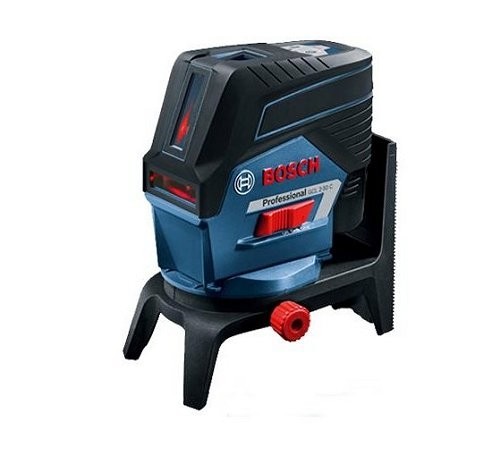

Bosch GCL2-50 + LR6 Cross Line Laser Level
GCL2-50 Bosch Laser Level + LR6 Receiver,. horizontal and vertical red laser lines and two centred plumb points with optimal visibility 20mtr without the use of a receiver (50mtr with LR6 Receiver). Features of the GCL2-80 Bosch Cross Line Laser includes precise positioning of the laser lines around the plumb points using the multifunctional RM Mount supplied with this Bosch Laser. The GCL2-50 Level comes with a pendulum lock for safe transportation from job to job and is powered by 4 x 1.5v LR6 AA batteries
Bosch LR6 Receiver for use with the GCL2-50C Cross Line Laser, compact design easy to operate laser receiver with a range out to 50mtr. Features of this handy LR6 Receiver include large 50mm reception area for fast detection of the red laser, alignment of laser beam plane, visual and audible signals great for working in various lighting conditions. The LR6 Receiver allows quick and easy fitting on the matching mount without having to use any screws plus the top mounted magnets give better fixing
Technical Specification of Bosch GCL2-50 Cross Line Laser Level
- High visibility red line projection
- 2 lines and 2 points
- Horizontal and vertical lines
- Two centred plumb points
- Plumb point accuracy +/- 0.7mm/mtr
- Laser line accuracy +/- 0.3mm/mtr
- Working range 20mtr
- Working range with receiver (not supplied) 50mtr
- Operating temperature -10C to + 50C
- Storage temperature -20C to + 70C
- Self levelling range +/- 4 degrees
- RM1 flexible mount
- Laser target plate
- Ceiling clip
- x4 1.5v LR6 AA batteries
- Tripod thread 1/4″
- IP54 dust and slash proof
- Laser class 2
- Laser diode 635 – 650nm
- Pendulum lock for safe transportation
- Protective pouch
- Bosch L-Boxx 136
- Size l x h 136mm x 122mm
- Weight 0.7kgs
- All Bosch Measuring Tools supplied by Industrial Power Tools UK come with full industrial warranty
Specification of LR6 Bosch Receiver
- Detects red laser lines
- Range 5mtr to 50mtr
- Measuring accuracy +/- 1mm fine
- Measuring accuracy +/- 3mm rough
- Large 50mm reception area
- Fast detection of the laser line
- Compact easy to operate design
- Alignment of laser beam plane
- Visual and audible signals
- Good for working in varying light conditions
- Quick and easy fitting to matching mount
- Top mounted magnets
- Size l x w x h 120mm x 70mm x 30mm
- Weight 0.2kgs
